Fenix HM75R

Description

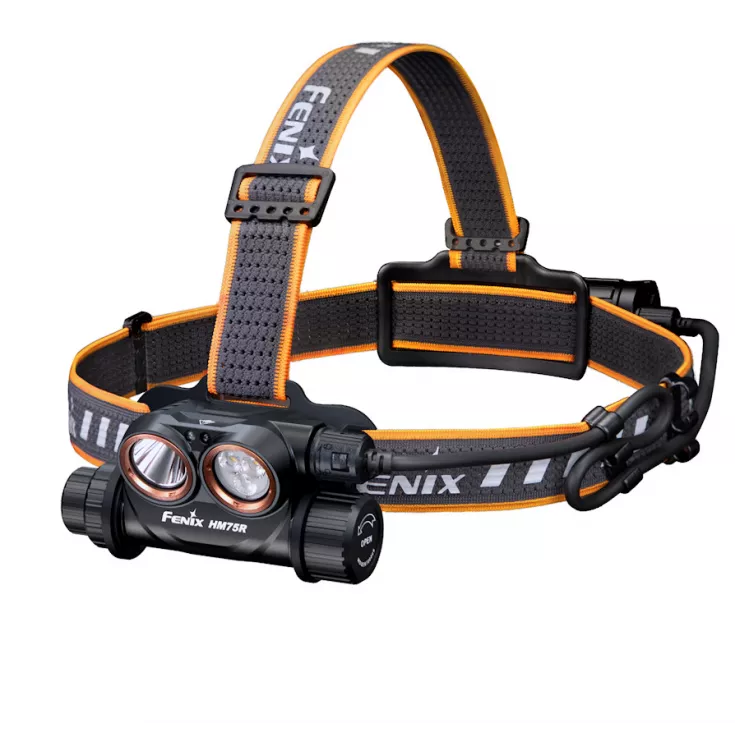

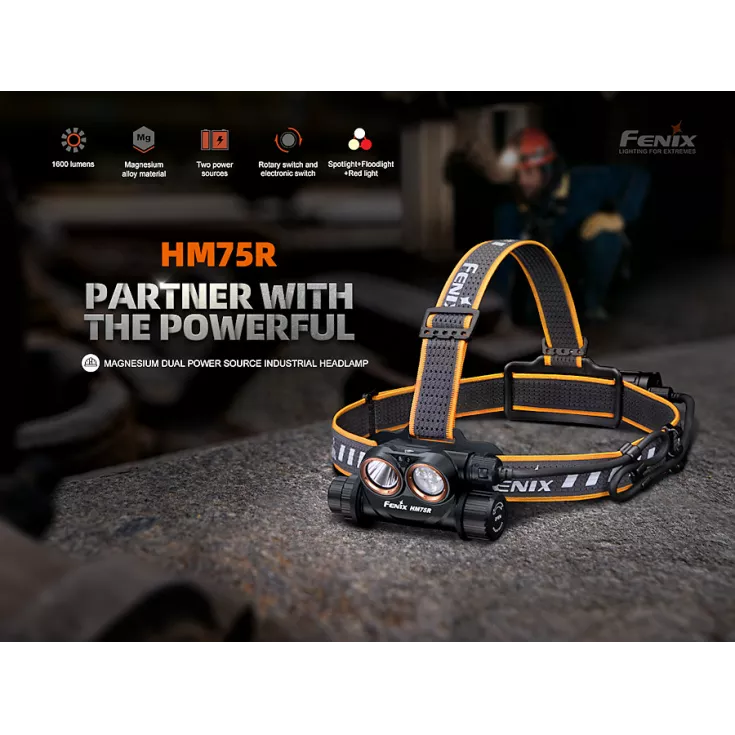

The Fenix HM75R is an industrial, high quality, dual power headlamp with a maximum output of 1600 lumens and a beam distance of up to 223 meters.

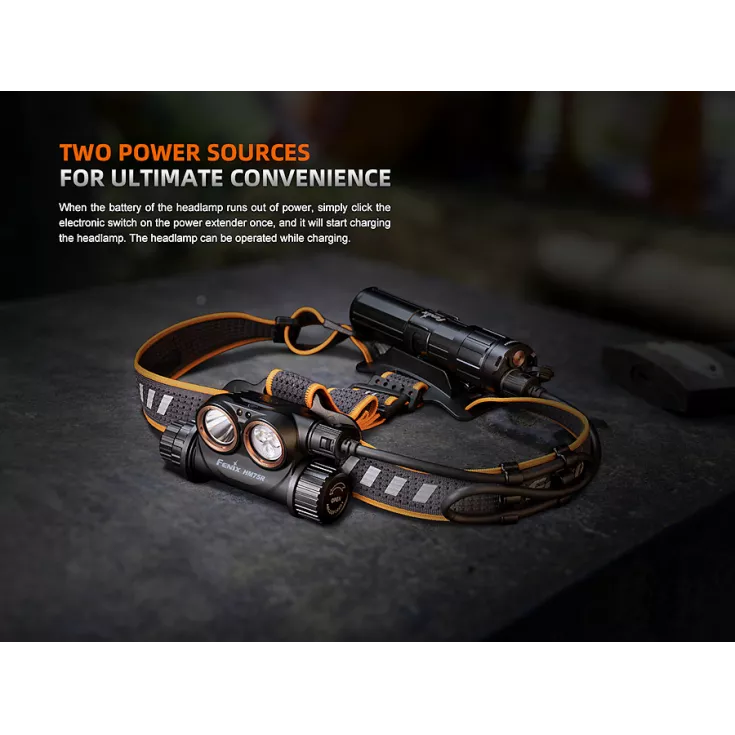

The headlamp includes two power sources; an 18650 li-ion battery inside the headtorch and a separate 21700 li-ion battery in the power extender, connected by a durable 1 meter cable. Once the 18650 battery has depleted, the power extender can be turned on to recharge the battery whilst still in use. This combination of batteries provides impressive runtimes, such as up to 18 hours and 20 minutes at a 350 lumen output.

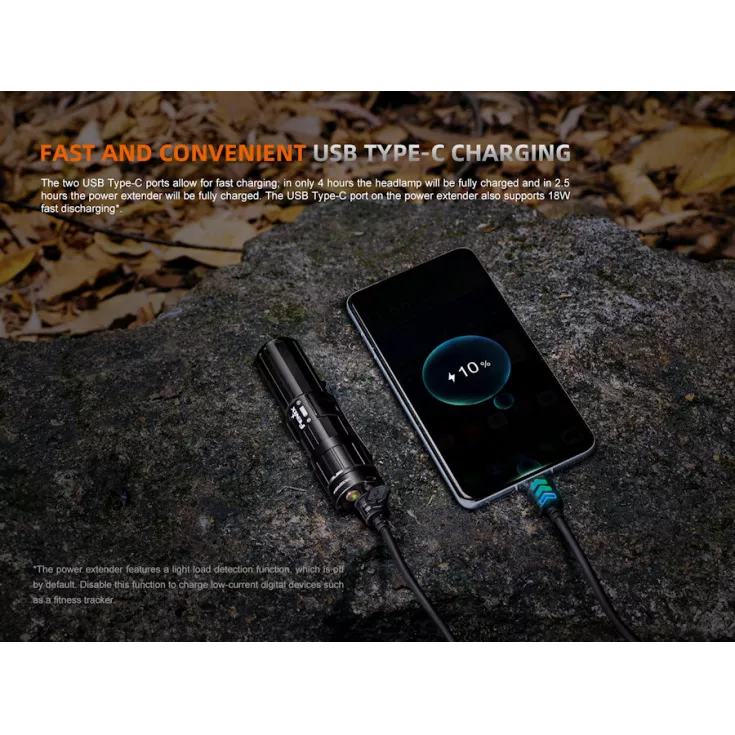

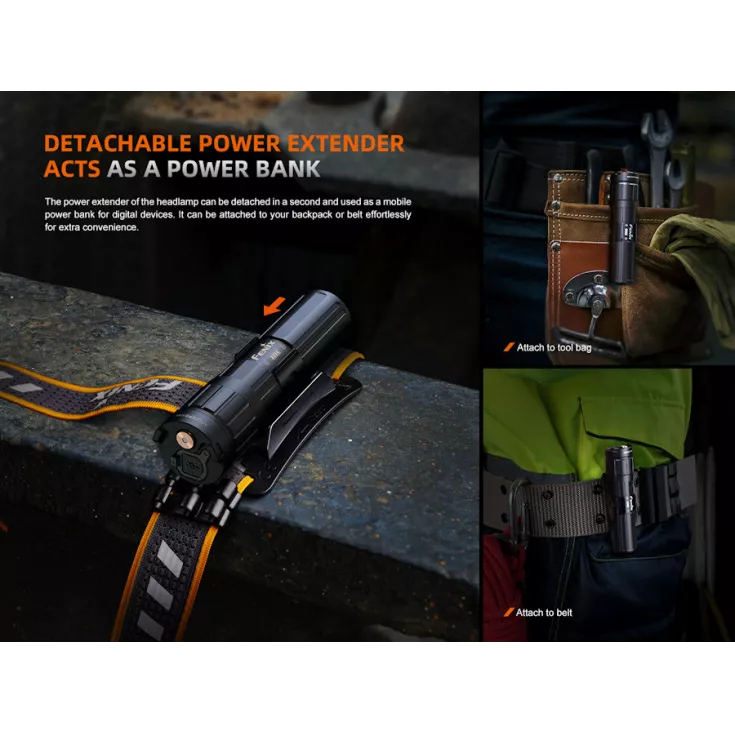

The power extender is detachable and can be used as a power bank to charge electronic devices and takes just 2.5 hours to fully charge via the USB Type-C port. When attached to the headlamp, it features a charging cable lock function to securely connect the headlamp and power extender, preventing any loose cables or connections.

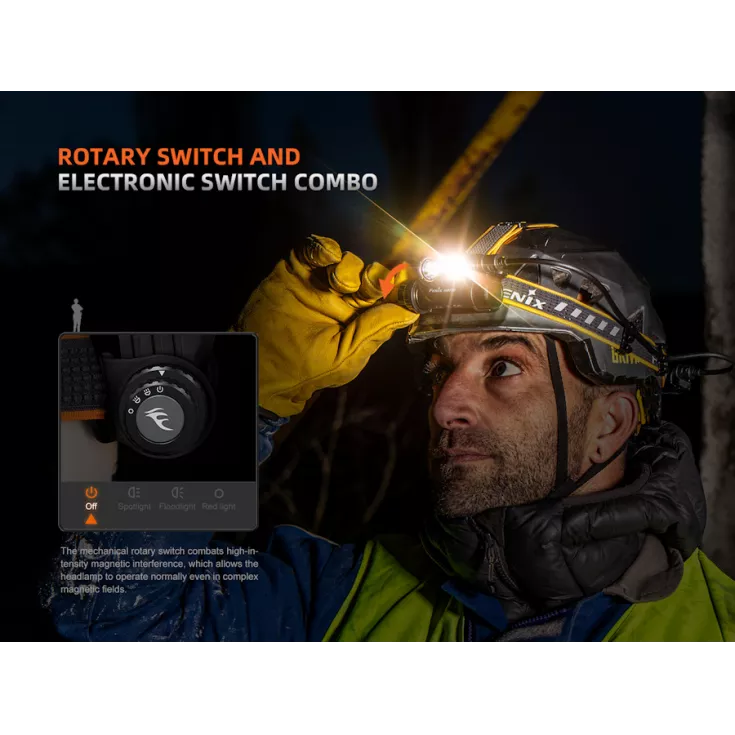

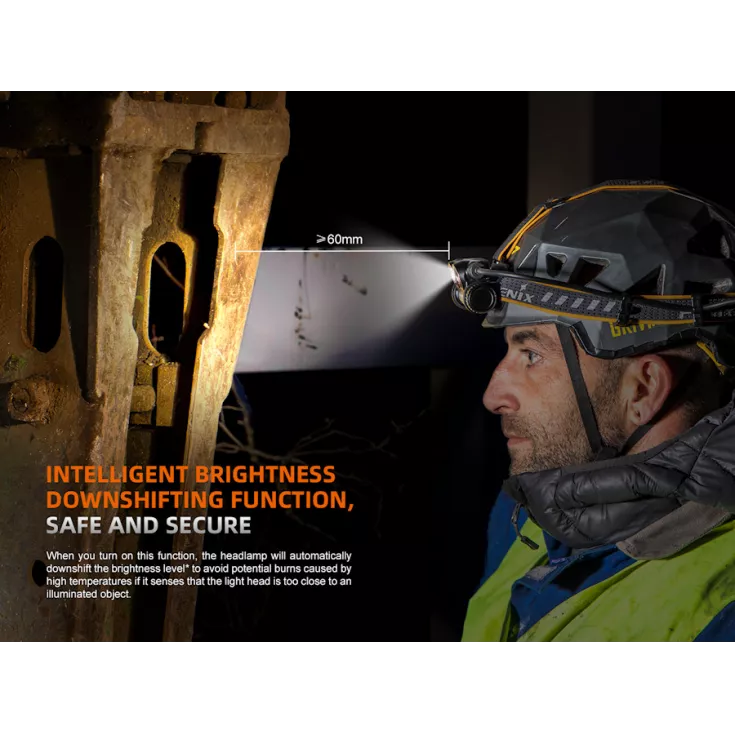

The HM75R is a triple coloured headlamp operated by a rotary switch to select the mode between spotlight, floodlight and red light, and an electronic switch to cycle through the brightness levels once in the desired mode. The light has an intelligent brightness downshifting function, enabling the brightness level to drop down when it is within 60 mm of an illuminated object, to avoid overheating.

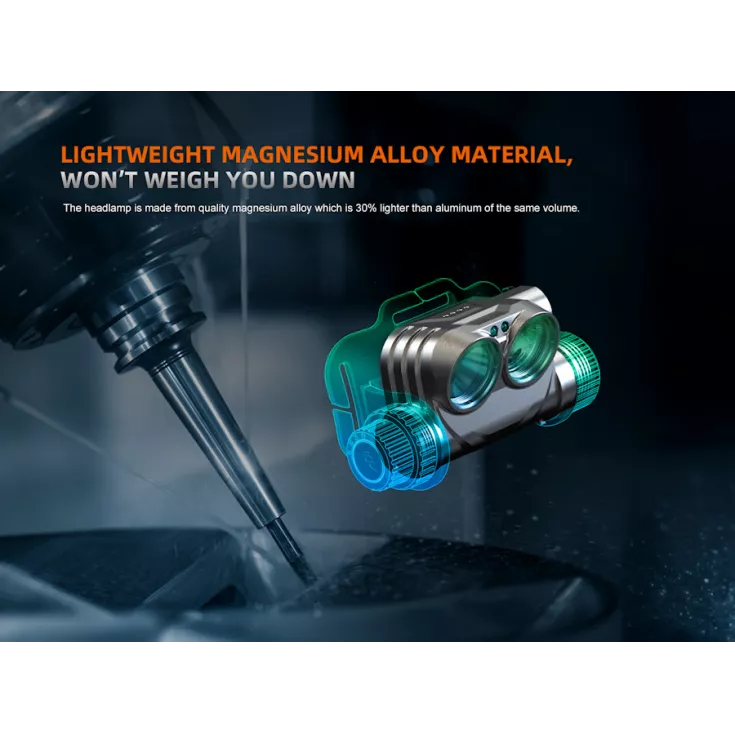

The Fenix headlamp is made out of a lightweight magnesium alloy material which can withstand a drop test of 2 meters on all 6 sides and has passed a 24 hour salt spray test.

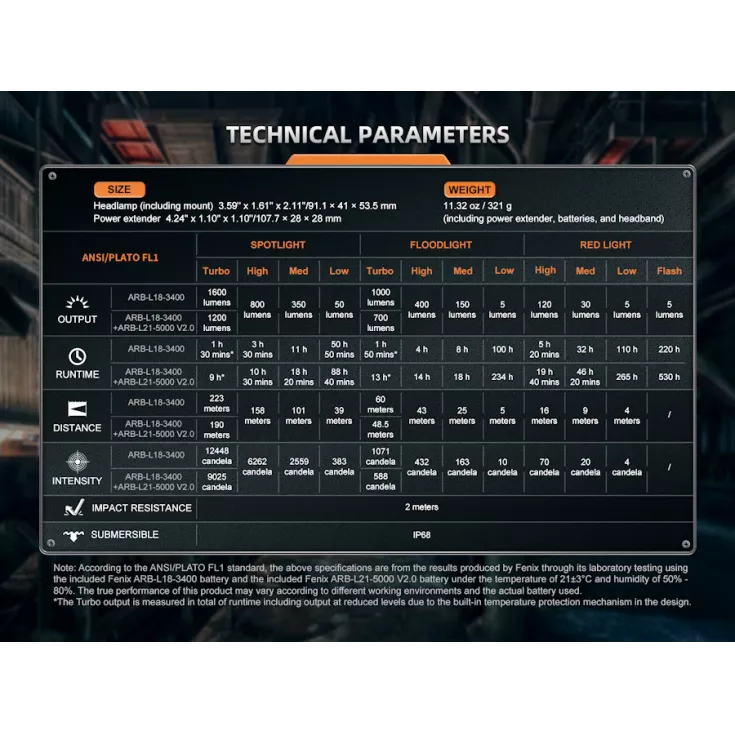

Brightness Levels, Runtime and Range:
Spotlight
Using ARB-L18-3400
Turbo: 1600 lumens – 1 hr 30 mins – 223 meters
High: 800 lumens – 3 hrs 30 mins – 158 meters
Med: 350 lumens – 11 hrs – 101 meters
Low: 50 lumens – 50 hrs 50 mins – 39 meters
Using ARB-L18-3400 + ARB-L21-5000 V2
Turbo: 1200 lumens – 9 hrs – 190 meters
High: 800 lumens – 10 hrs 30 mins – 158 meters
Med: 350 lumens – 18 hrs 20 mins – 101 meters
Low: 50 lumens – 88 hrs 40 mins – 39 meters

Floodlight
Using ARB-L18-3400
Turbo: 1000 lumens – 1 hr 50 mins – 60 meters
High: 400 lumens – 4 hrs – 43 meters
Med: 150 lumens – 8 hrs – 25 meters
Low: 5 lumens – 100 hrs – 5 meters
Using ARB-L18-3400 + ARB-L21-5000 V2
Turbo: 700 lumens – 13 hrs – 48.5 meters
High: 400 lumens – 14 hrs – 43 meters
Med: 150 lumens – 18 hrs – 25 meters
Low: 5 lumens – 234 hrs – 5 meters

Red light
Using ARB-L18-3400
High: 120 lumens – 5 hrs 20 mins – 16 meters
Med: 30 lumens – 32 hrs – 9 meters
Low: 5 lumens – 110 hrs – 4 meters
Flash: 5 lumens – 220 hrs
Using ARB-L18-3400 + ARB-L21-5000 V2
High: 120 lumens – 19 hrs 40 mins – 16 meters
Med: 30 lumens – 46 hrs 20 mins – 9 meters
Low: 5 lumens – 265 hrs – 4 meters
Flash: 5 lumens – 530 hrs runtime

Waterproof to IP68 and resistant to impacts up to 2 meters.

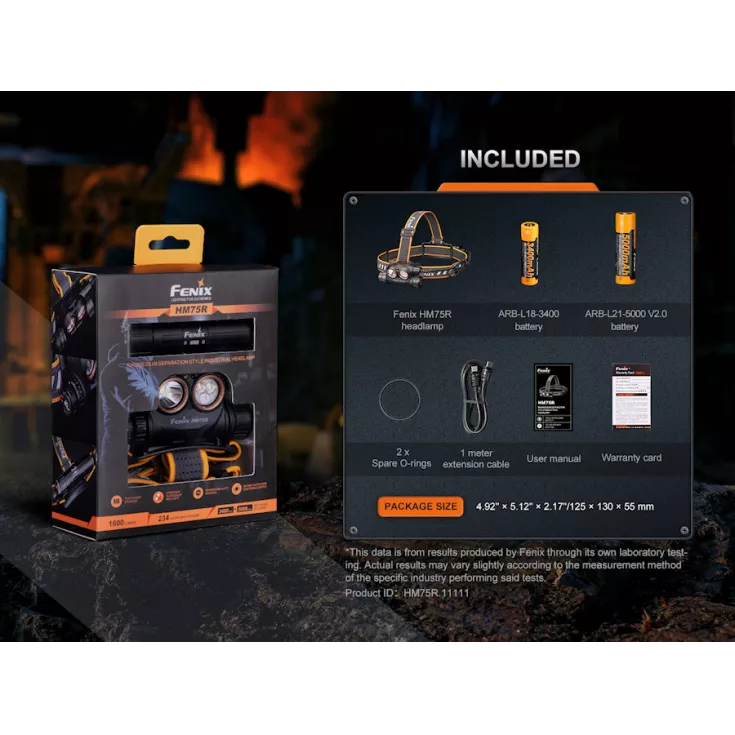

Fenix HM75R Included Accessories: ARB-L18-3400 18650 3400mAh battery, ARB-L21-5000 V2 21700 5000mAh battery, power extender, 2 x spare o-rings, 1 meter extension cable.
